HLP/GD cigar line for sale.

Сообщений 1 страница 2 из 2

1

New GD cigar line for sale from china.

GDX2 Hinge-Lid Packer Device is a mature packaging machine came from an Italian company - G.D. in the early Nineties. GDX2 produced in China is called ZB45, with the compact mechanical structure and reasonable design, providing production capacity at 400 packs per minute. The production line is including of GDX2 Hinge-lid Packer, CH Transparent Overwrapping Packer, CT Carton Boxes Packer, CV Carton Box Transparent Overwrapping Packer, etc. Meanwhile, ZB45 uses G.D. MICRO-II Computer Control System providing for
automatic operation.

https://forumupload.ru/uploads/001b/8c/93/2/550843.jpg

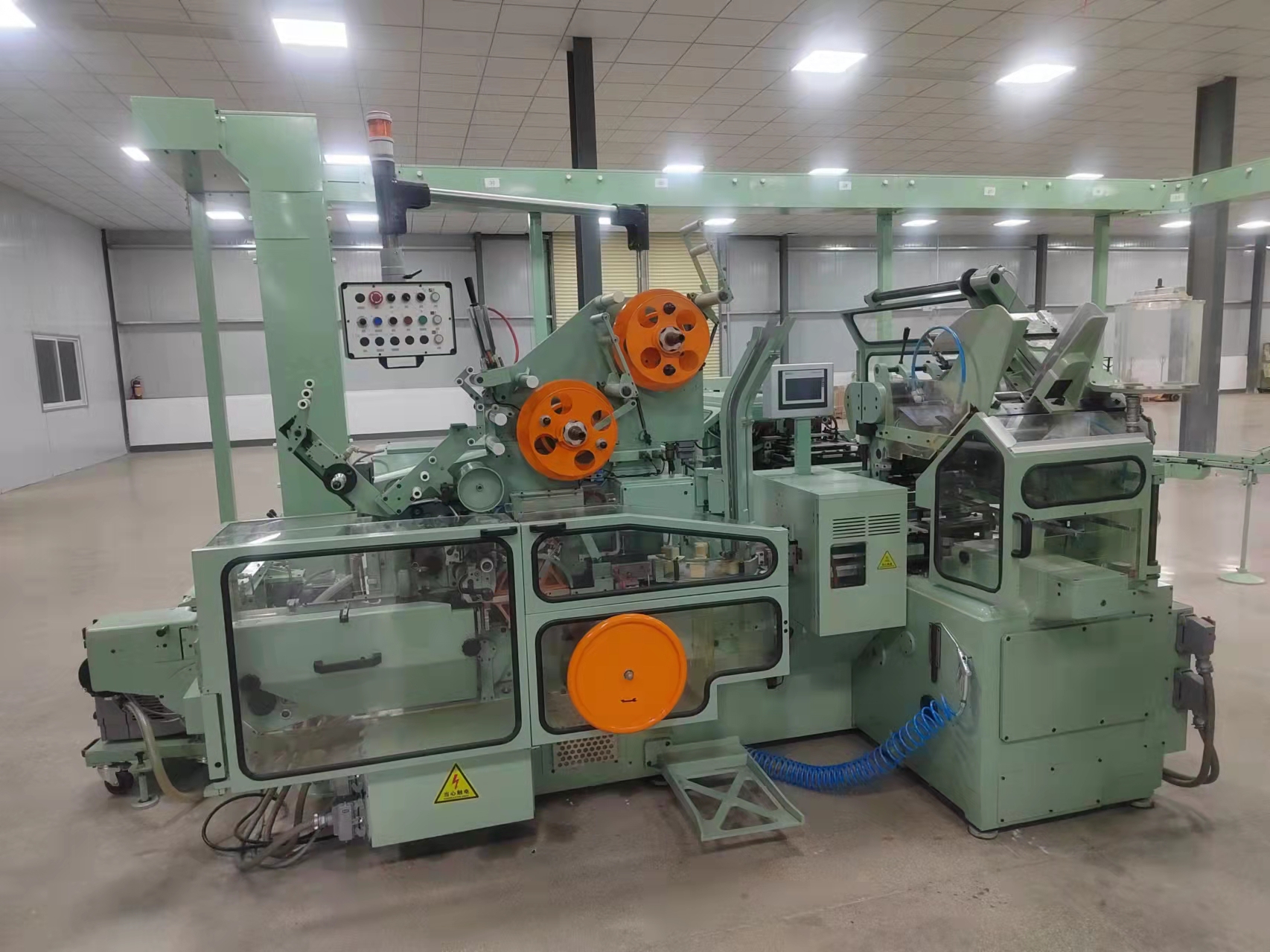

Cigarette packaging line in a GD/X2 pack

https://forumupload.ru/uploads/001b/8c/93/2/28747.jpg

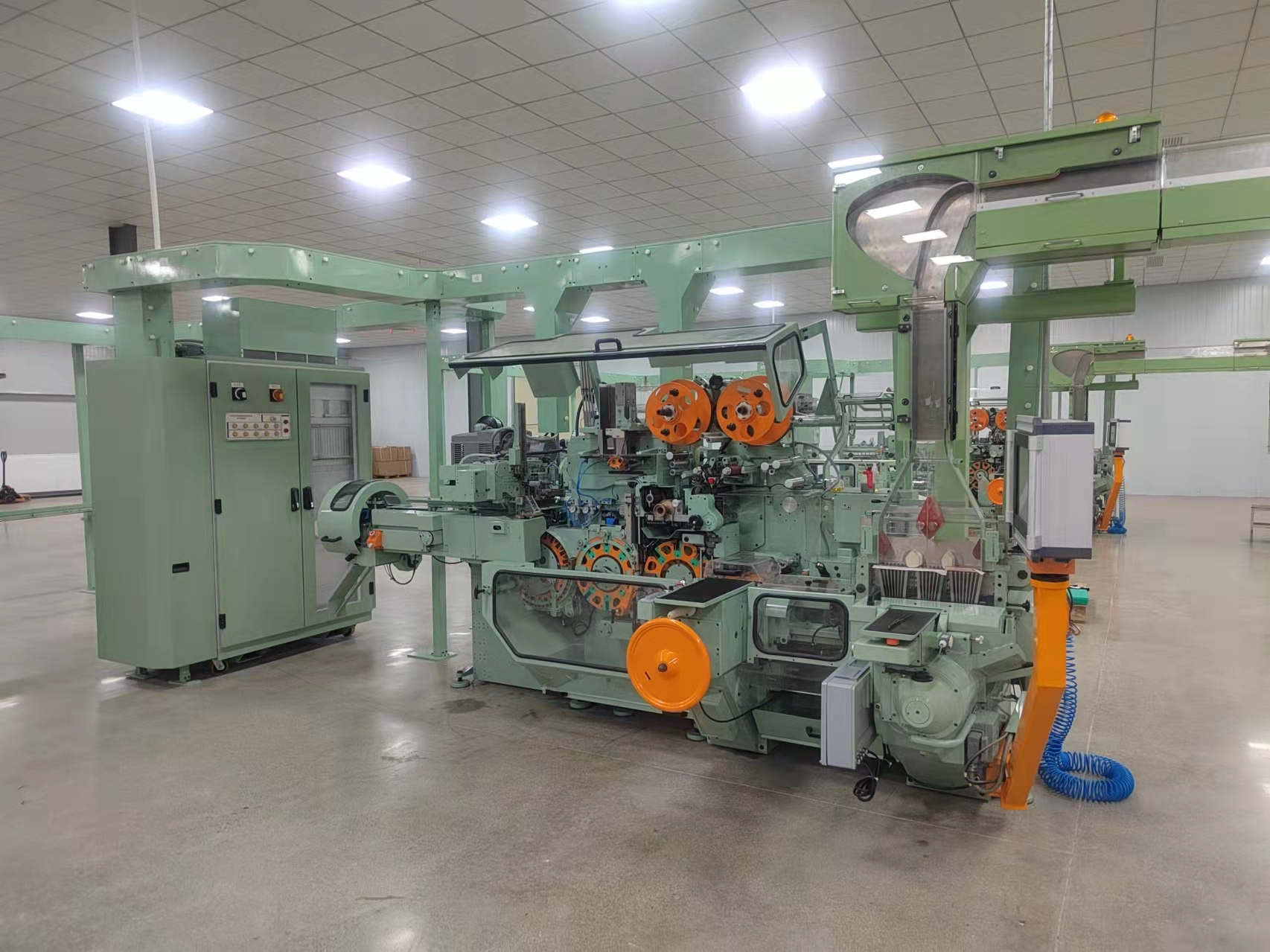

Cigarette packaging line in a GD/X2 pack.

https://forumupload.ru/uploads/001b/8c/93/2/206713.jpg

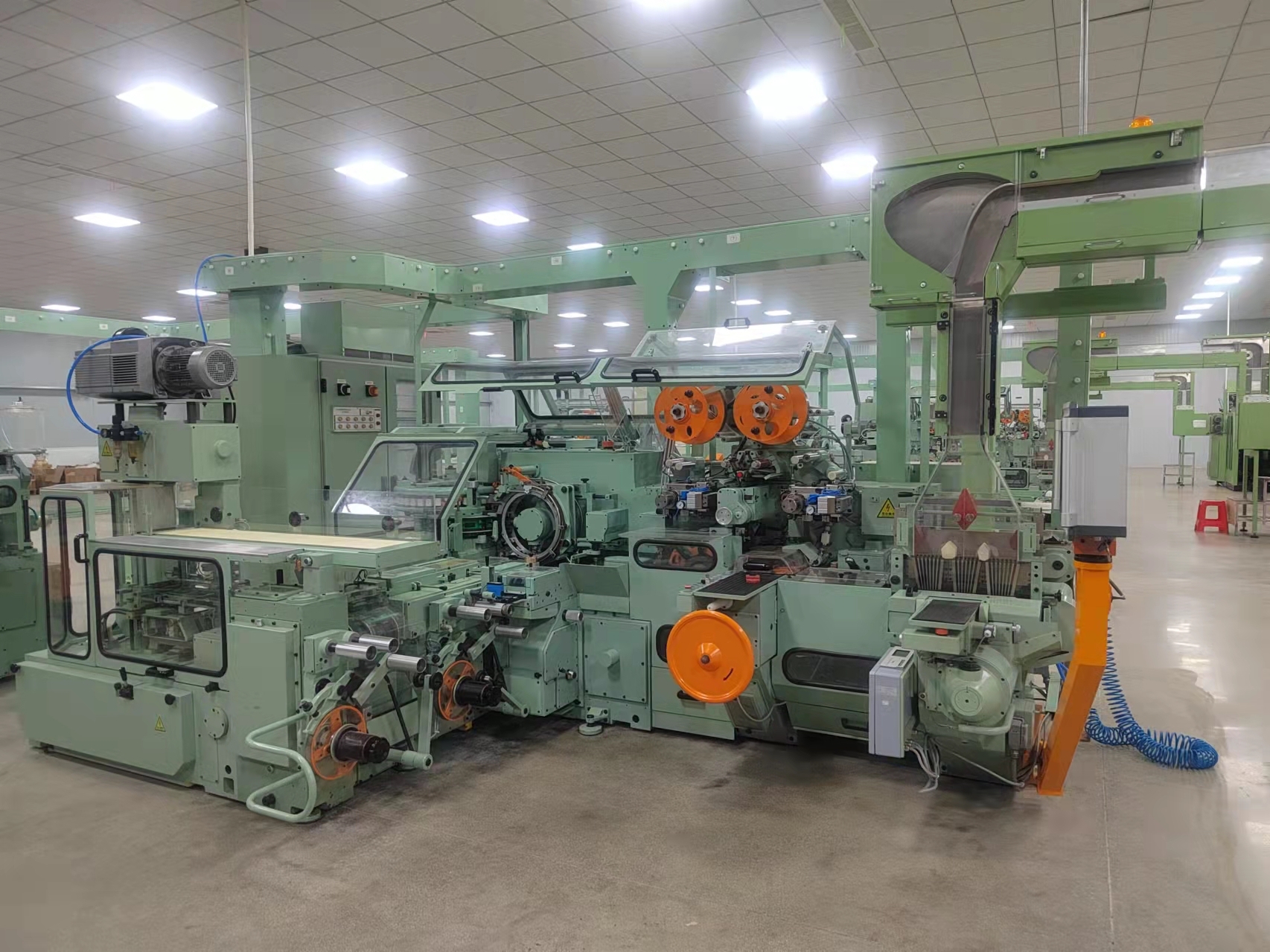

Cigarette packaging line in a GD/X2 pack.

https://forumupload.ru/uploads/001b/8c/93/2/107218.jpg

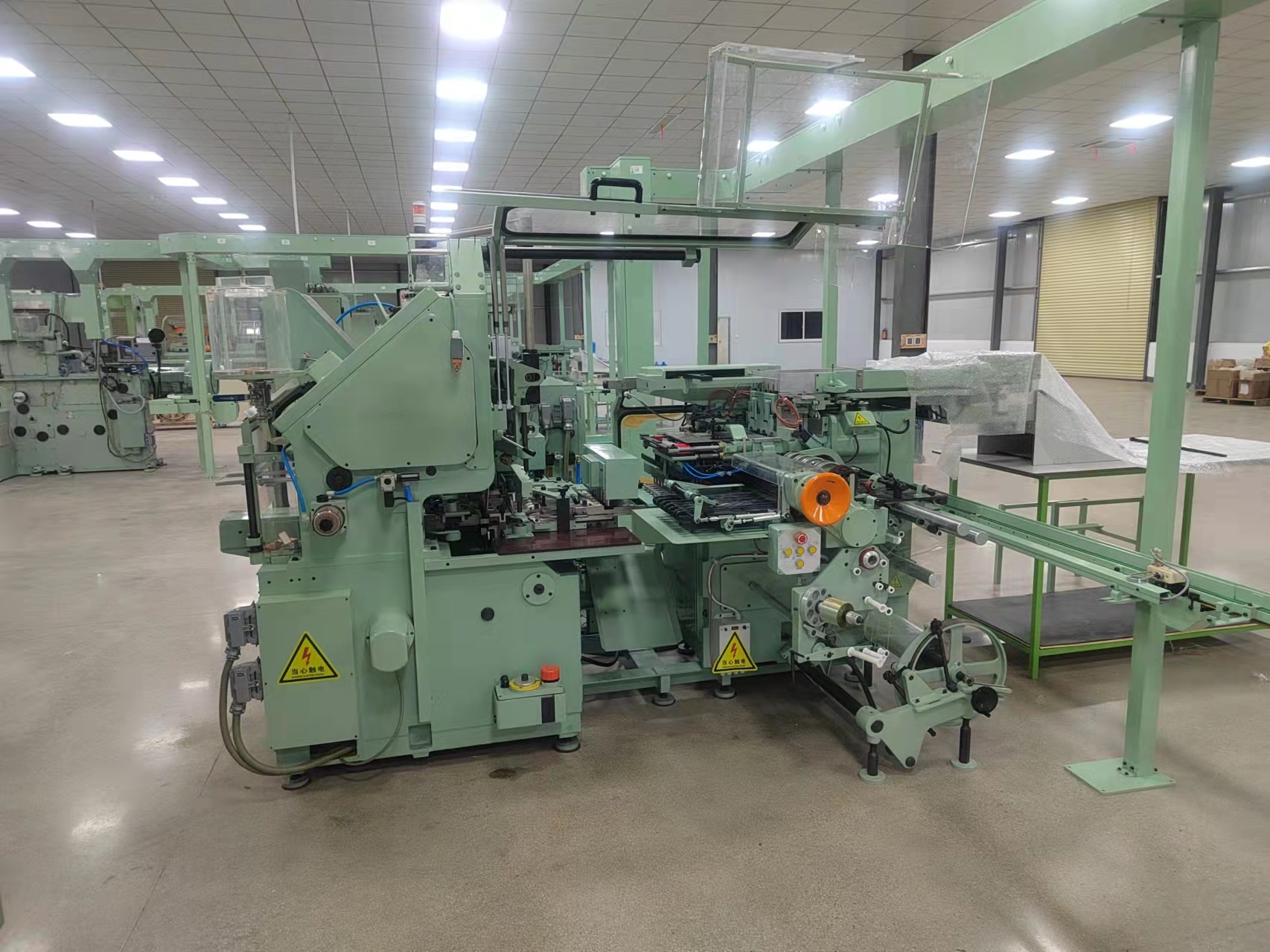

Cigarette packaging line in a GD/X2 pack.

https://forumupload.ru/uploads/001b/8c/93/2/267550.jpg

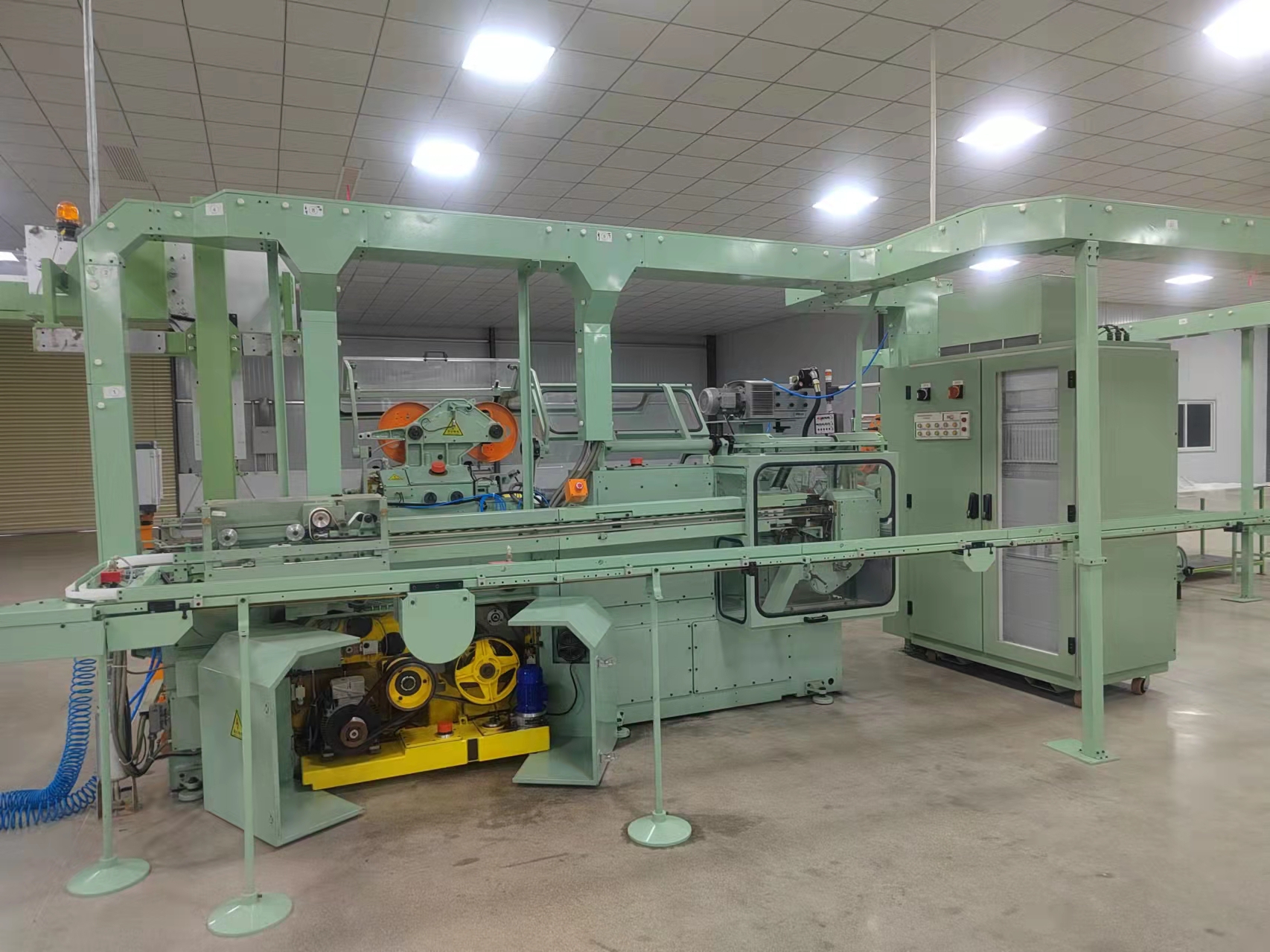

Cigarette packaging line in a GD/X2 pack

https://forumupload.ru/uploads/001b/8c/93/2/803051.jpg

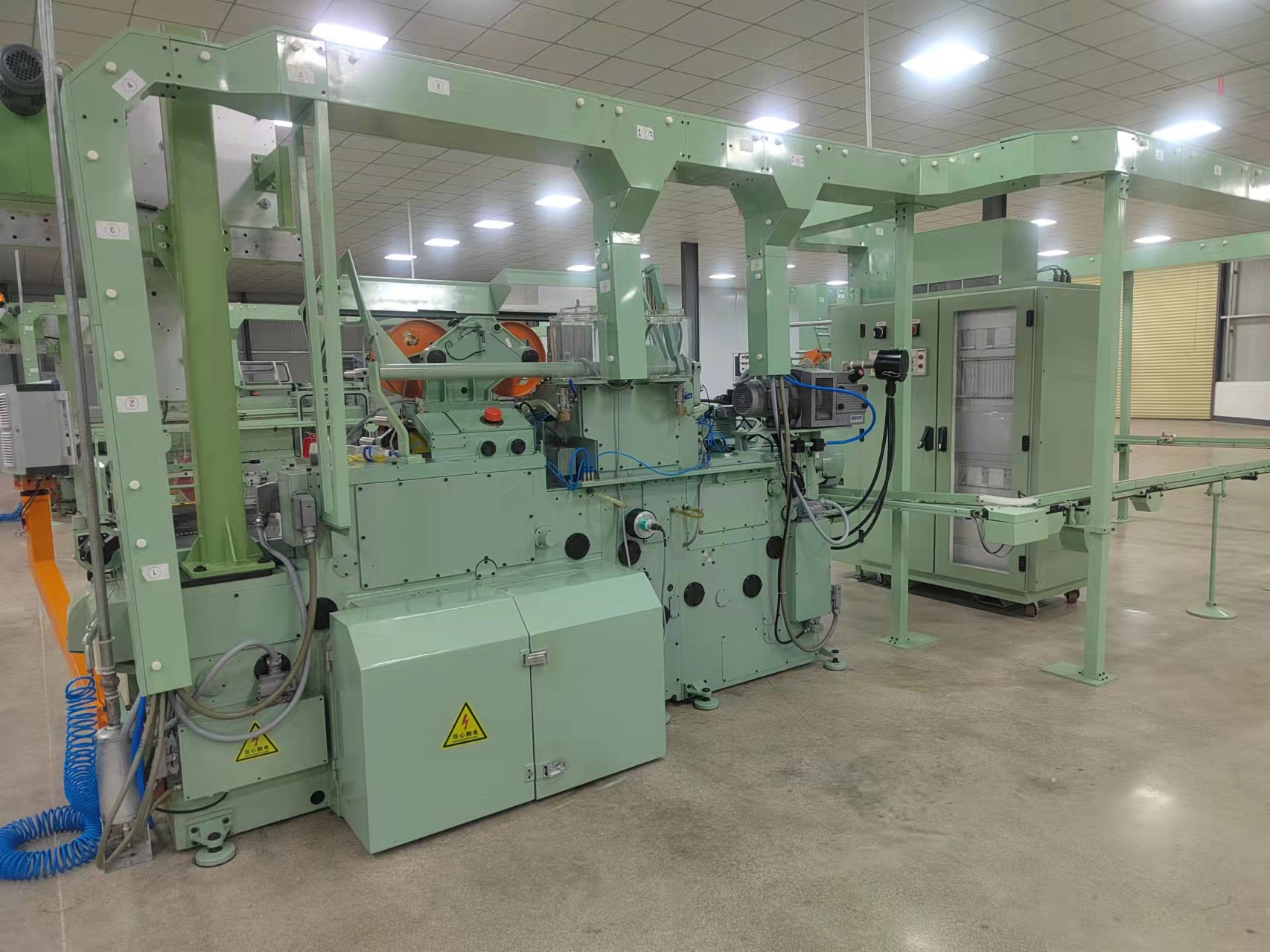

Cigarette packaging line in a GD/X2 pack

https://forumupload.ru/uploads/001b/8c/93/2/184455.jpg

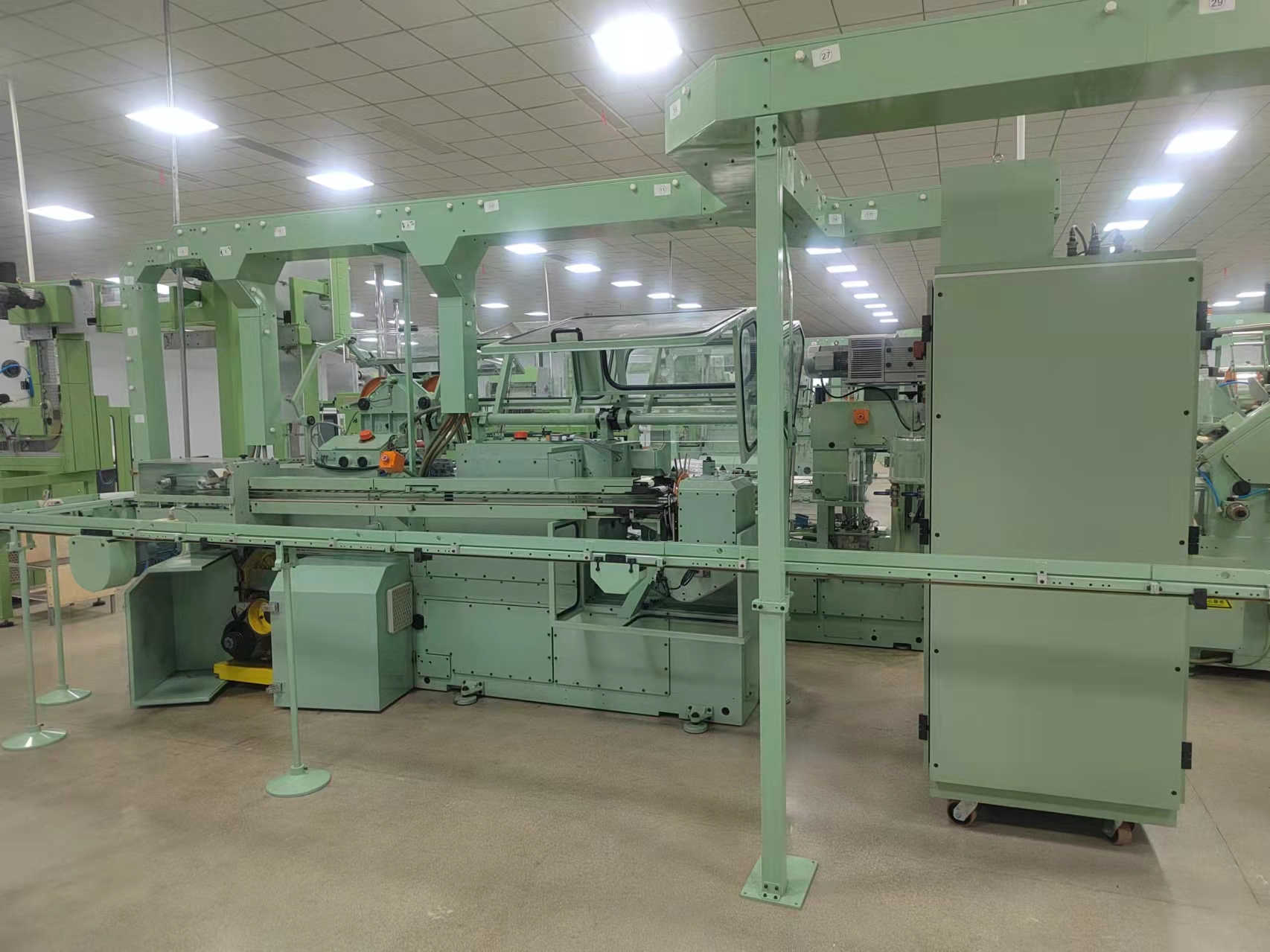

Cigarette packaging line in a GD/X2 pack.

https://forumupload.ru/uploads/001b/8c/93/2/985417.jpg

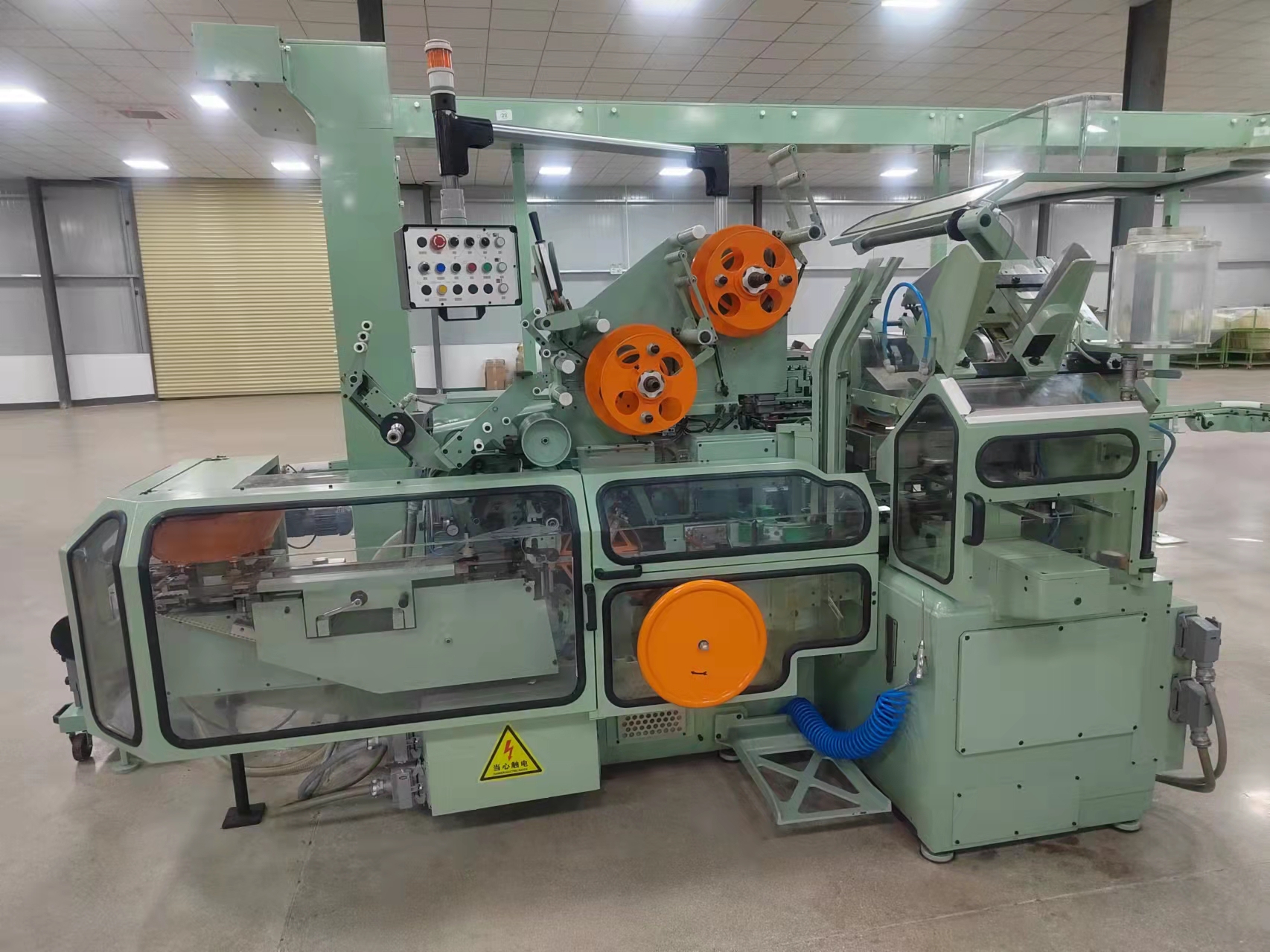

Cigarette packaging line in a GD/X2 pack.

https://forumupload.ru/uploads/001b/8c/93/2/145079.jpg

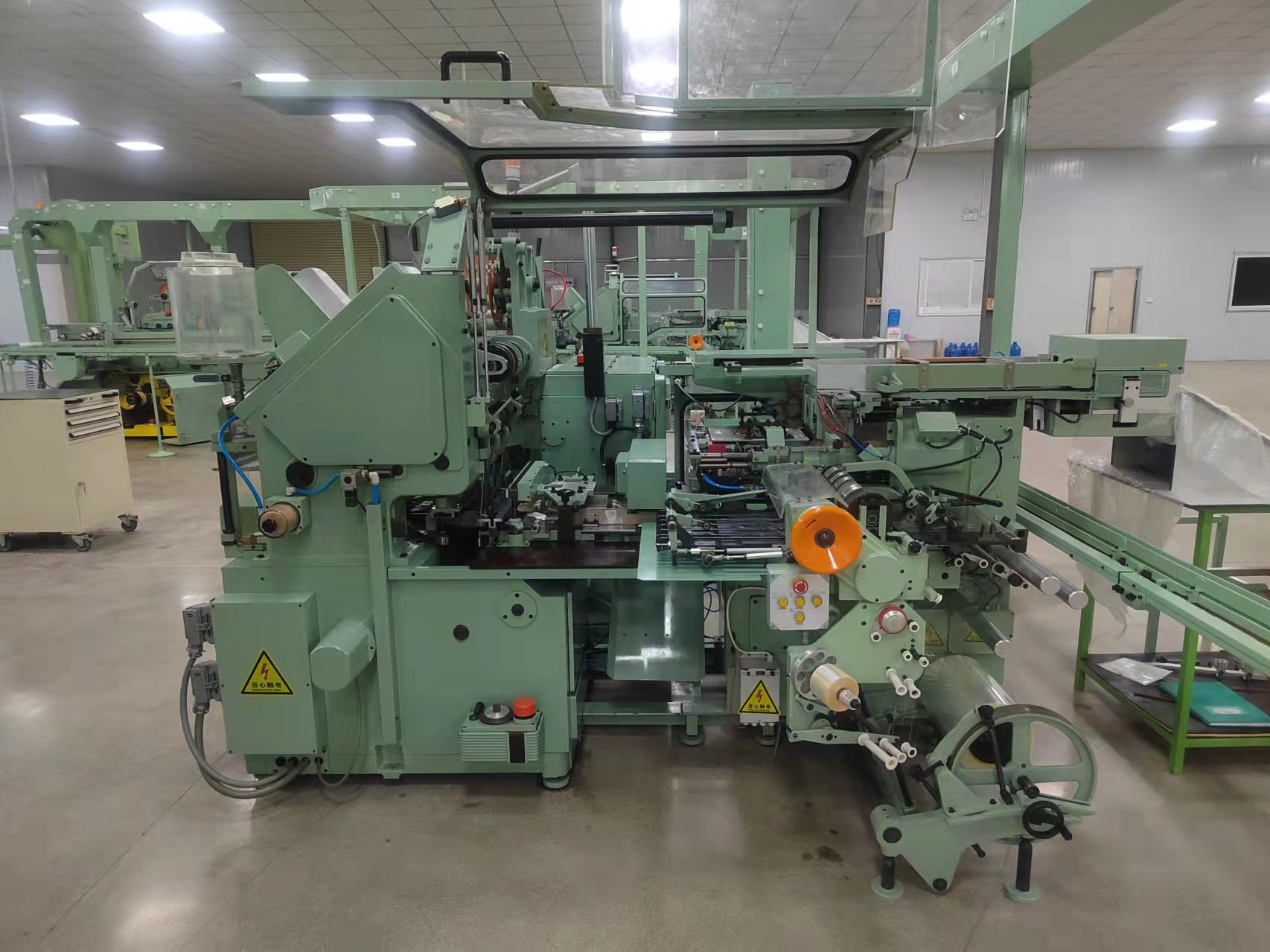

Cigarette packaging line in a GD/X2 pack.

https://forumupload.ru/uploads/001b/8c/93/2/831049.jpg

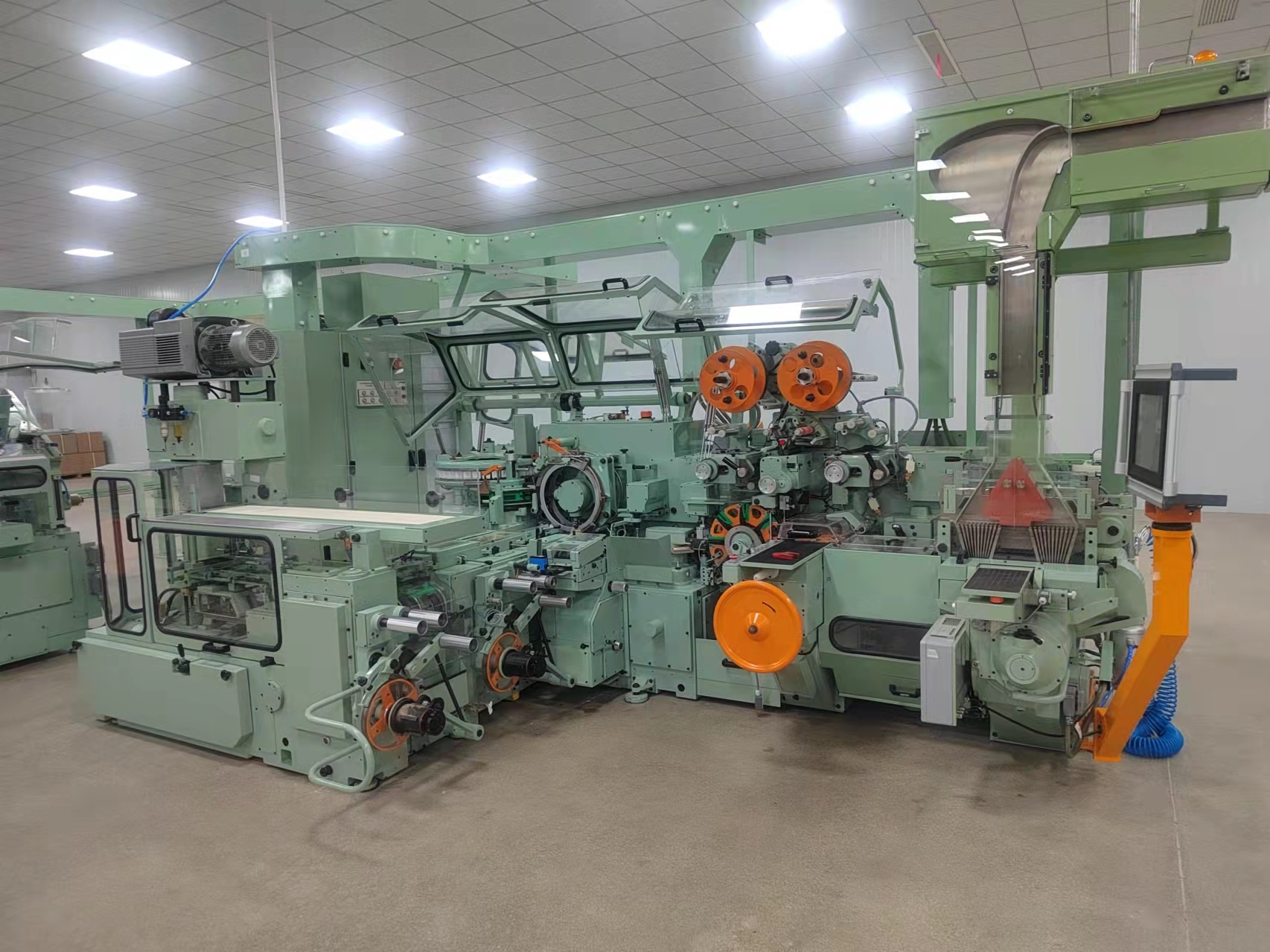

Cigarette packaging line in a GD/X2 pack.

https://forumupload.ru/uploads/001b/8c/93/2/673231.jpg

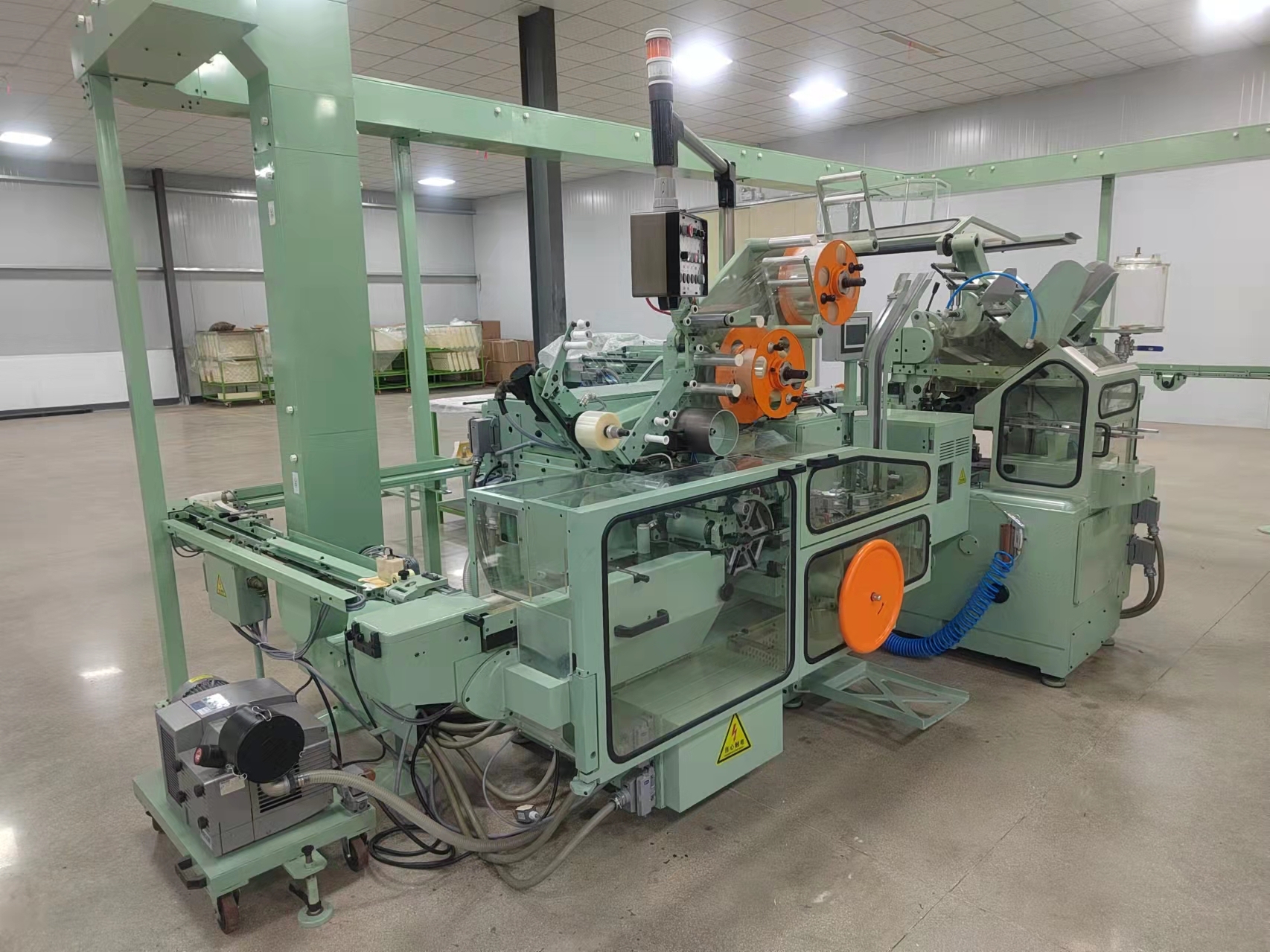

ZB45 Hinge-lid Packer
1. Linking together with Comflex (YF12) or GD S-90 (YF 13) Cigarette Storing & Transferring Device, ZB45 Hinge-lid Packer Device becomes
an automatically Cigarette and Packaging Production Line.
2. Linking with A400 Tray Unloader, ZB45 Hinge-lid Packer Device can be proceeded single pack production.
3. Based on customer's requirement, the permutation of packing can be provided 7-7-6, 7-6-7 or 10-10, etc.
4. The pack length can be accepted from 84 to 100 mm.
5. The Carton pack could be American style or European style.
Basic Parameters: Working Conditions:
1. Rated Production Capacity: 400 packs/ min 1. Ambient Temperature: 18-28 ℃
2. Effective Operation Rate: ≥85 2. Relative Humidity: 55-65%
3. Rated Power: 27.4 KW 3. Altitude: < 2000 m
4. Noise: ≤85 dB (A) 4. Power Supply: 3 Phase 4 Wire (PE) 380V±19V 50±1Hz
5. Weight: 14060 kg 5. Compressed Air: ≥0.5MPa, Flow < 1000L/min after drying and filtering
6. Standard Dimension(DWH): 7450mm*7300mm*2250mm 6. Production site dust content: <3 mg/m
7. Standard Required Area: 65.625 ㎡(7500mm*8750mm) 7. Materials Storage: 22-23 ℃, Humidity 55-60% & ≥48 hr

Сontact phone watsap: +886 916 676662

0

2

Video of the work of the production line for the manufacture of cigarette packaging in a GD X2 pack.

1. Linking together with Comflex (YF12) or GD S-90 (YF 13) Cigarette Storing & Transferring Device, ZB45 Hinge-lid Packer Device becomes
an automatically Cigarette and Packaging Production Line.
2. Linking with A400 Tray Unloader, ZB45 Hinge-lid Packer Device can be proceeded single pack production.
3. Based on customer's requirement, the permutation of packing can be provided 7-7-6, 7-6-7 or 10-10, etc.
4. The pack length can be accepted from 84 to 100 mm.
5. The Carton pack could be American style or European style.

Сontact phone watsap: +886 916 676662
